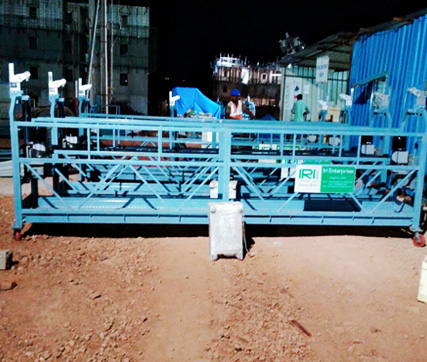

SUSPENDED ROPE PLATFORMS
Suspended Rope Platform (SRP) or Rope Suspended Platform(RSP) is widely used for painting, plastering and other applications these days instead of Scaffoldings. The ease to install and safety makes it preferred choice for builders and contractors. It is also called as Cradle or Gondola by few.
Technical Specifications
| Rated Load (kg) | 800 Kgs |
| Hoist Speed | 8-9 M/Min |
| Hoist Type | Alpha Type Rope Holding Mechanism |
| Voltage | 415 V |
| Frequency | 50Hz |
| Power ( KW ) | 1.8x2 |
| Anti tilt safety lock | provided (2No.s) |
| Wire rope | 4No.s,8.6mm,4x31 galvanised construction grade, 45KN breaking force |
| Platform dimensions | Length: 7.5Mtrs(2.5+2.5+1.5+1)Width:2 Feet |
| Material | ISI Marked mild steel |
| Finish | Hot Dipped Galvanizing |
| Parapet Extension on Outer side (Top) | 6.8 Feet |
| Front Beam Height(Top) | 4.5 to 5.75 Feet(Adjustable distance of 100mm) |
| Electric Cable | ISI Marked 2.5mm x 5 core |
| Counter Weights | 1100 - 1200 Kgs (50 No.s) Made of Concrete |
Safety:
1. Electro-Magnetic Brake motor with manual release system.
2. 2 Nos Anti Tilt Safety lock.
3. 2 Nos Limit Switch for over travel cut off.
4. Emergency Stop Button Provided
Features :
1. Electrical Panel Box made with branded components like Schneider/Siemens/ABB.
2. Ambraco/TVS high tensile bolts (Zinc Plated).
3. Special Rope Locking system used to avoid excessive U Clamps.
4. Special Rope Suspension used to avoid excessive U clamps.
Optional:
1. Hot Dipped Galavanizing.
2. Load Cell with digital display unit.
3. Anti-Swing System.
4. Customized Platform including single person Platform, 90 degree Platform and Adjustable Platform.
5. Fixed Parapet suspension system can be supplied for RCC walls with thickness of minimum 250mm.
6. Motor cover to protect motor from debris and dust.
7. Additional Anti –Tilt Limit Switch which cuts power supply before Anti-tilt safety lock.
