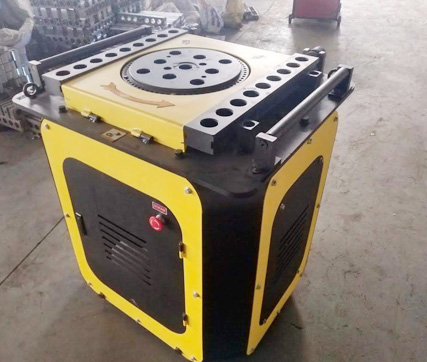

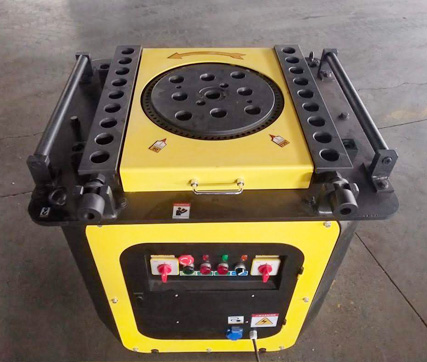

BAR - BENDING MACHINE
Technical Specifications
| Model | Capacity | Motor Power | Motor Speed | Weight | Dimension | Bending Frequency | Diameter of Working Plate |
| GW 42 | TMT Bar – 6mm - 32mm |
3.7KW | 1440r/min | 340 Kgs | 1000x800x900 mm | 3-15 cycle/min | 350 mm |
| GW 50 | TMT Bar – 6mm - 40mm |
4KW | 1440r/min | 380 Kgs | 1050x850x950 mm | 3-15 Cycle/min | 430 mm |
Features :
1. Sturdy , Elegant & Compact Design making it safe, easy to use and easy to move
2. Electrical Components are mainly Schneider making it more durable.
3. Easy to operate
4. Pre-setting angle scope from 0-360’ by adjusting the pin on work plate
5. Electrical components are of mostly Schneider make making it more durable.
6. Working panel is of 10mm thickness and made of durable cast steel working plate. Adjustable attachment can bend more angles.
7. The accessories are made of ultra high hardness materials
8. Equipped with quality brake motor which reduces the large bending angle error caused by inertia during the working process of the machine
9. Machine is equipped with emergency button to ensure personal safety.
